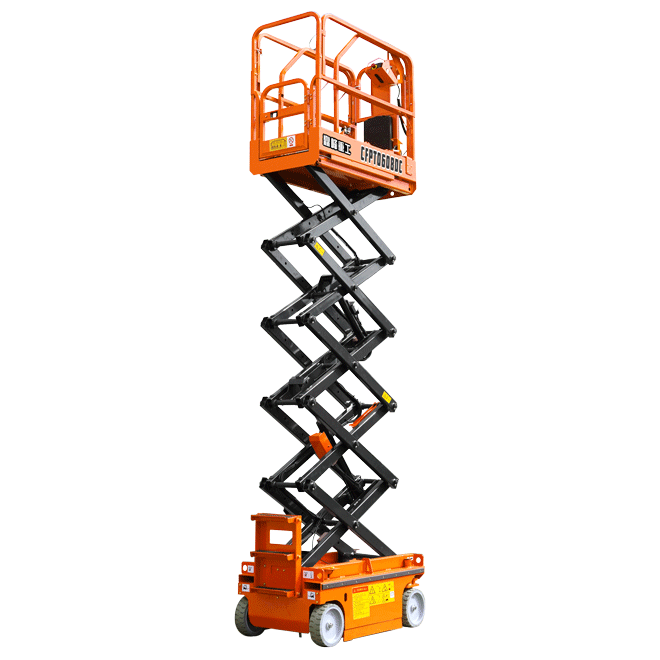

CFPT0608DC Self-propelled Scissor Lift Platform

Compact electric scissor lift forindoor and outdoor applications.

Get A Quote Download Catalog
Electric Scissor Lift
7.6m
Max Working Height
3°
Max working Slope
240kg
Max Payload

Product Overview

CFPT0608DC Self-propelled Scissor Lift Platform features a compact design, powerful performance, and excellent maneuverability, allowing operators to move efficiently through narrow spaces and work confidently in a wide range of indoor and outdoor environments.

Designed for productivity, safety, and ease of operation, it provides a stable elevated working platform for construction, maintenance, equipment installation, warehouse operations, and other aerial tasks. Its flexible mobility helps reduce setup time and improve overall job-site efficiency.

Technical Specifications

Specifications
CFPT0608DC
Load Capacity
240KG
Load Capacity Of Extended Platform
100KG
Workers (Indoor/Outdoor)
2/0
Max. working Height - A
7.6m
Max. platform Height - B
5.6m
Overall Length -C
1540mm
Overall Width -D
810mm
Overall Height (Guardrail Unfolded) - E1
2195mm
Overall Height (Guardrail Folded) - E2
1830mm
Platform Size(Length) - F1
1370mm
Platform Size(Width) - F2
700mm
Platform Extension Size - G
600mm
Min. ground Clearance (Stowed)
67mm
Min. ground Clearance (Raised)
17mm
Wheelbase
1130mm
Min. turning Radius (Inner Wheel)
480mm
Min. turning Radius (Outer Wheel)
1670mm
Lifting Motor
24V/1.3kw
Travel Motor
24V/550W
Machine Running Speed (Stowed)
4.5Km/h
Machine Running Speed (Raised)
0.8Km/h
Rising/Descending Speed
34/28sec
Batteries
2X12V/100AH(C5)
Charger
24V/15A
Gradeability
25%
Max. working Slope
1.5°/3°
Tyre
305X100mm
Weight
1260KG

APPLICATIONS

View More →

Construction

Facility Maintenance

Installation

Warehouse & Logistics

MANUFACTURING PROCESS

01

Laser Cutting

02

Robotic Welding

03

Shot Blasting

04

Powder Coating

05

Assembly

06

Quality Inspection

CERTIFICATIONS

Download Resources

Product Catalog
PDF · 13.87 MB
Download

Product Video
