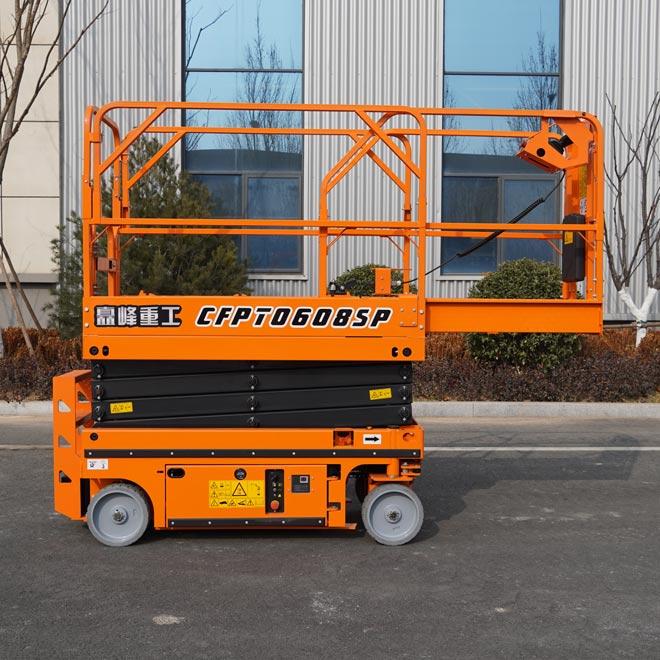

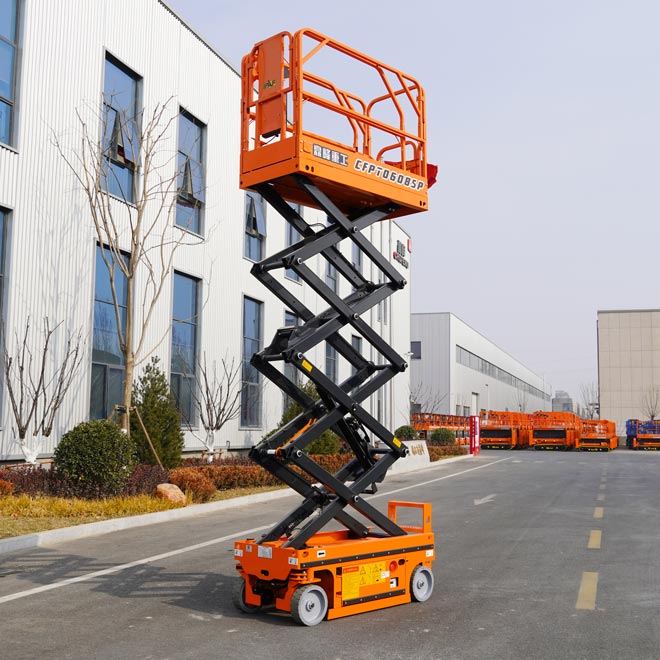

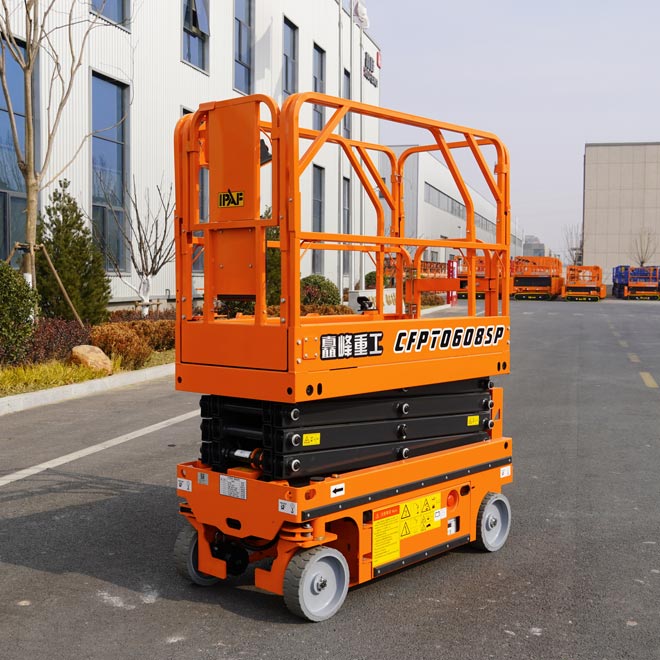

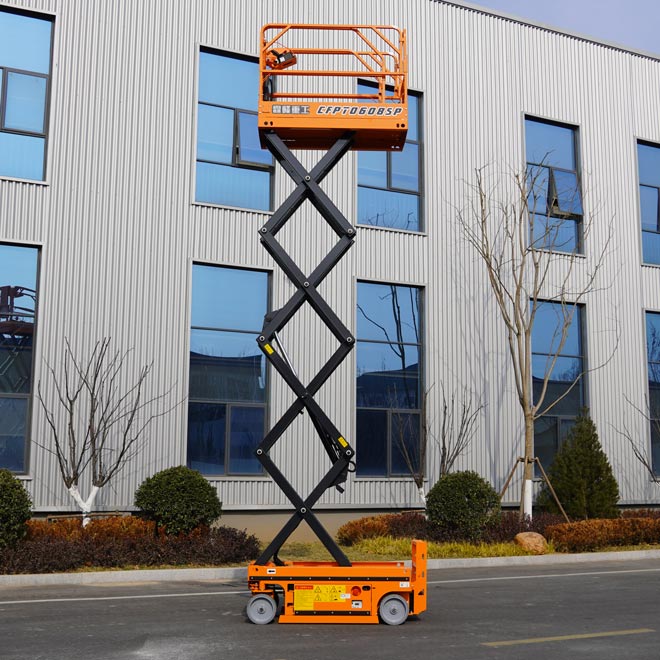

CFPT0608SP Self-propelled Scissor Lift Platform

Get A Quote Download Catalog
Electric Scissor Lift
7.8m
Max Working Height
3°
Max working Slope
230kg
Max Payload

Product Overview

CFPT0608SP Self-propelled Scissor Lift Platform features a compact design, powerful performance, and excellent maneuverability, allowing operators to move efficiently through narrow spaces and work confidently in a wide range of indoor and outdoor environments.

Designed for productivity, safety, and ease of operation, it provides a stable elevated working platform for construction, maintenance, equipment installation, warehouse operations, and other aerial tasks. Its flexible mobility helps reduce setup time and improve overall job-site efficiency.

Technical Specifications

Specifications
CFPT0608SP
Load Capacity
230KG
Load Capacity Of Extended Platform
113KG
Workers (Indoor/Outdoor)
2/1
Max. working Height - A
7.8m
Max. platform Height - B
5.8m(Indoor)/5m(Outdoor)
Overall Length -C
1860mm
Overall Width -D
790mm
Overall Height (Guardrail Unfolded) - E1
2180mm
Overall Height (Guardrail Folded) - E2
1825mm
Platform Size(Length) - F1
1670mm
Platform Size(Width) - F2
740mm
Platform Extension Size - G
900mm
Min. ground Clearance (Stowed)
86mm
Min. ground Clearance (Raised)
16mm
Wheelbase
1355mm
Min. turning Radius (Inner Wheel)
0.0m
Min. turning Radius (Outer Wheel)
1.64m
Lifting Motor
3kw
Travel Motor
/
Machine Running Speed (Stowed)
3Km/h
Machine Running Speed (Raised)
0.8Km/h
Rising/Descending Speed
17/22sec
Batteries
4X6V/200Ah (C5)
Charger
24V/36A
Gradeability
25%
Max. working Slope
1.5°/3°
Tyre
305X100mm
Weight
1451Kg
