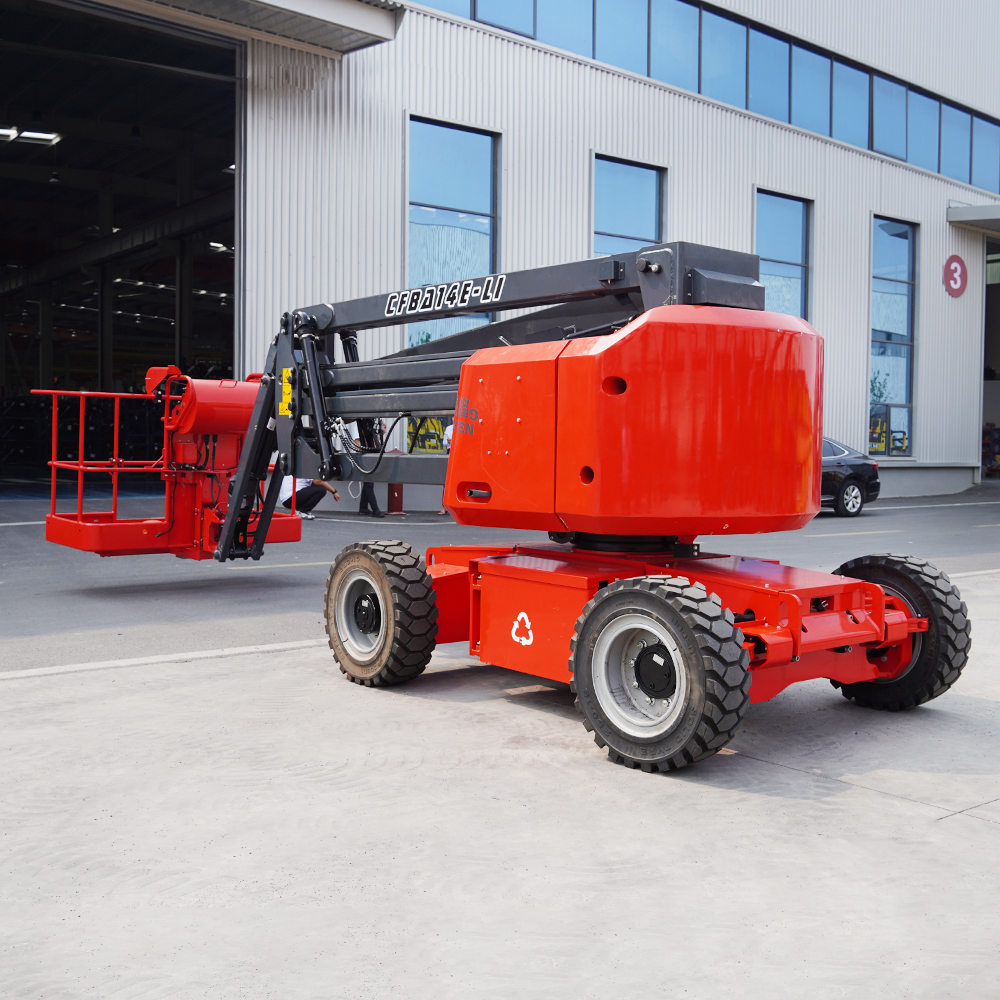

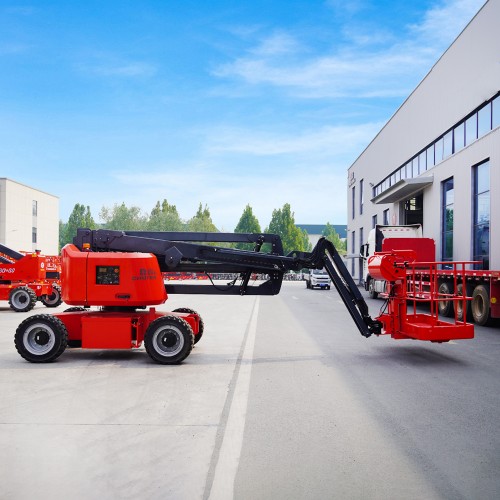

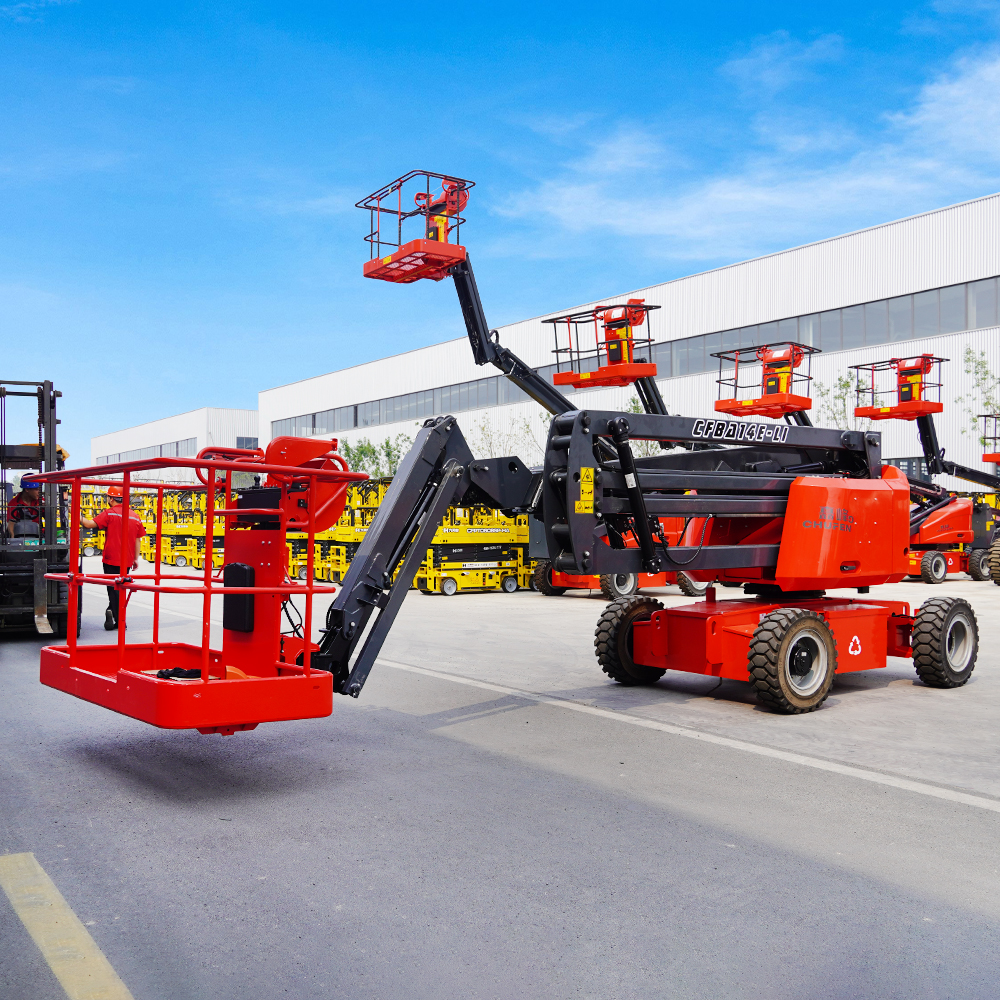

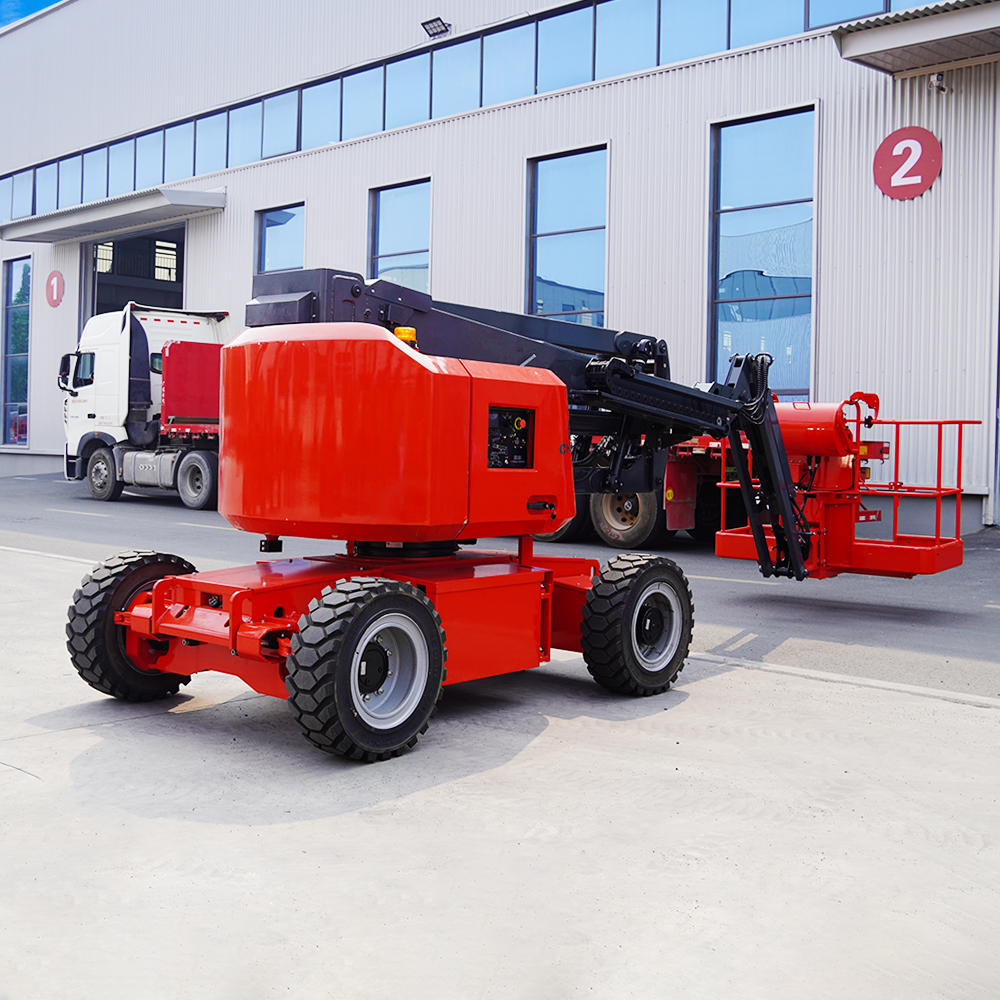

CFBA14E – Electric Articulated Boom Lifts
CFBA14E – Articulated Boom Lifts Advantages:
• Lightweight and energy-efficient compact and with excellent range.
• 355° rotation angle of turntable allows for a wide range of multi-angle work.
• Simple operation complete safety devices easy to meet the different needs of aerial work.
• Battery-powered zero noise and zero emission especially suitable for indoor and outdoor construction work.
CFBA14E – Articulated Boom Lifts Parameters:
| Model | CFBA14E |
| Max.platform Height | 13.8m |
| Max.working Height | 15.8m |
| Loading Capacity | 230kg |
| Max. horizontal Outreach | 7.81m |
| Max. up & Over Clearance | 7.26m |
| Overall Length(Stowed) | 6.66m |
| Overall Width(Stowed) | 1.8m |
| Overall Height(Stowed) | 1.98m |
| Wheelbase | 2.03m |
| Ground Clearance | 0.24m |
| Platform Dimension(L×W×H) | 1.83*0.76m |
| Rotation Angle Of Turntable | 355° |
| Rotation Angle Of Platform | 160° |
| Drive Speed(Stowed) | 4.8±0.25km/h |
| Drive Speed(Raised) | 1.0±0.05km/h |
| Gradeability | 30% |
| Turning Radius(Inside) | 1.83m |
| Turning Radius(Outside) | 4.1m |
| Rotary Table Tailswept | 50mm |
| Max.working Slope | 3° |
| Drive*Steer | RWD/FWS |
| Tire Type | Solid Tire/9-14.5 |
| Battery | Lead-Acid Battery |
| Control Voltage | 12V DC |
| Hydraulic Oil Tank | 30L |
| Weight(Lead-Acid / Lithium) | 7540kg/7400kg |
Standard Configuration
• Solid Tyre
• Lead-acid Battery
• Weighing System
• Display Screen
• Rexroth System
• 355° Turntable Rotation
• Main Arm Drops By Its Own Weight
• Emergency Brake Release
• Fault Diagnosis System
• Emergency Stop System
• Emergency Descent System
• Tilt Protection System
• 160° Hydraulic Rotary Platform
• Safety Warning Light
• Rear Detection And Ride Confirmation
• Full Proportional Handle Gradient Control
• Hydraulic Leveling Working Platform
• Horn And Buzzer Safety Warning
Optional Configuration
• Lithium Battery
• 1.83m Working Guardrail
• Foam Non-marking Tires
• Height Limit Collision Avoidance Device
• Install Working Lights On The Platform
• Install AC Power Cord On The Platform
