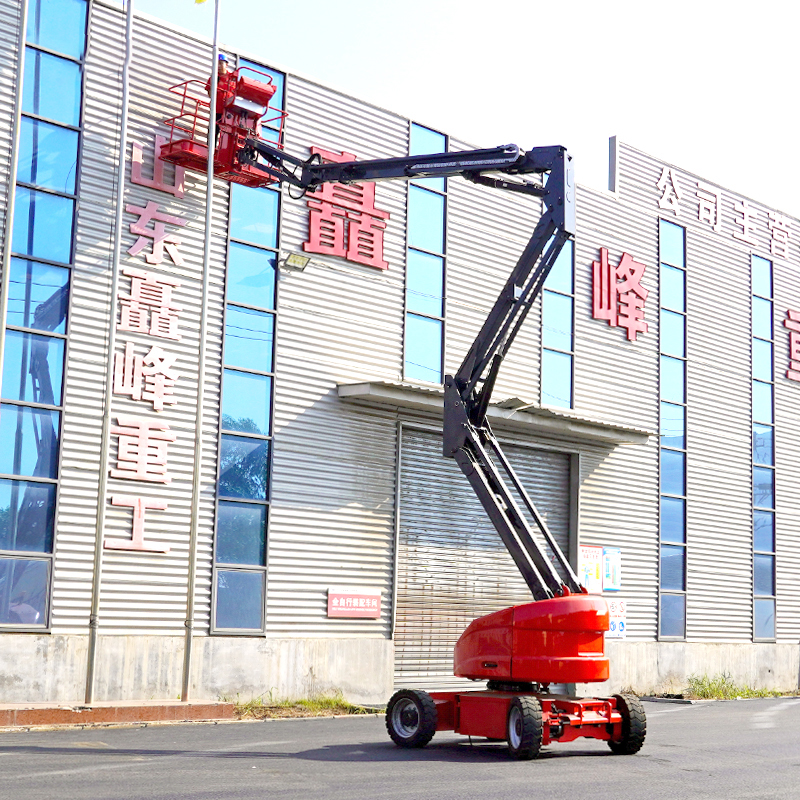

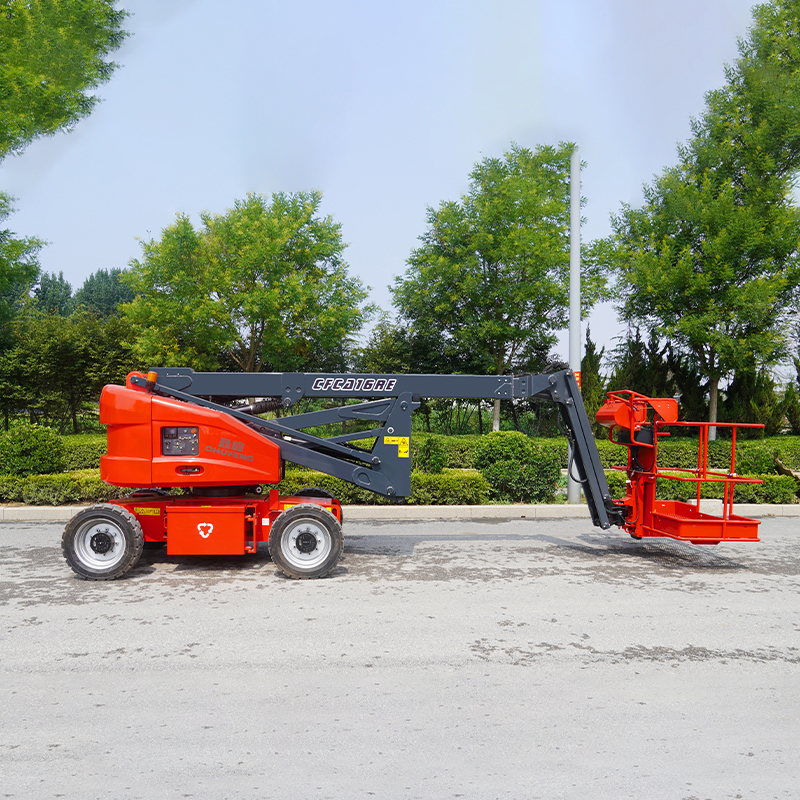

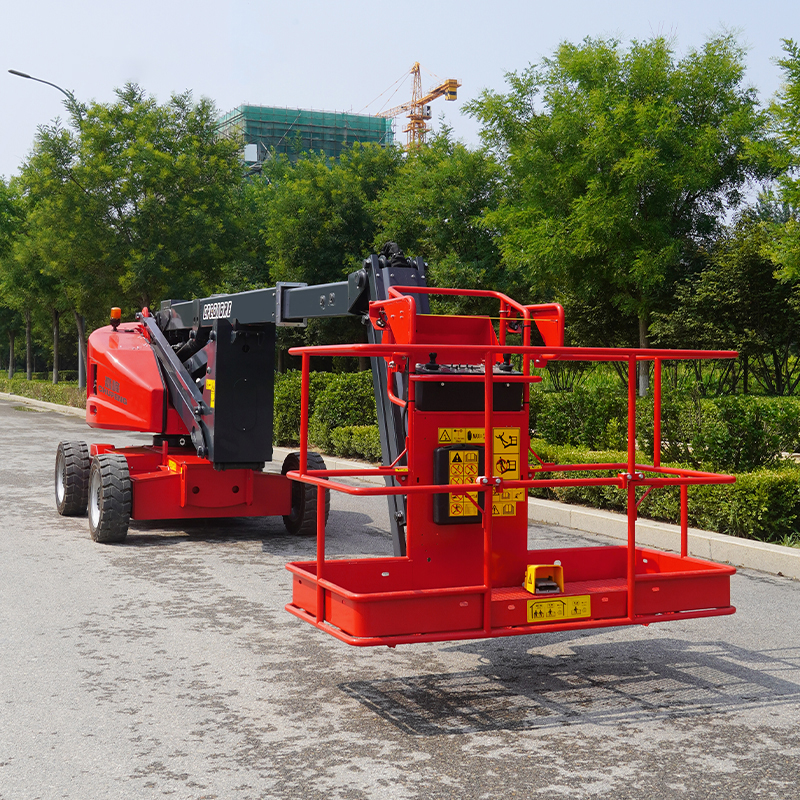

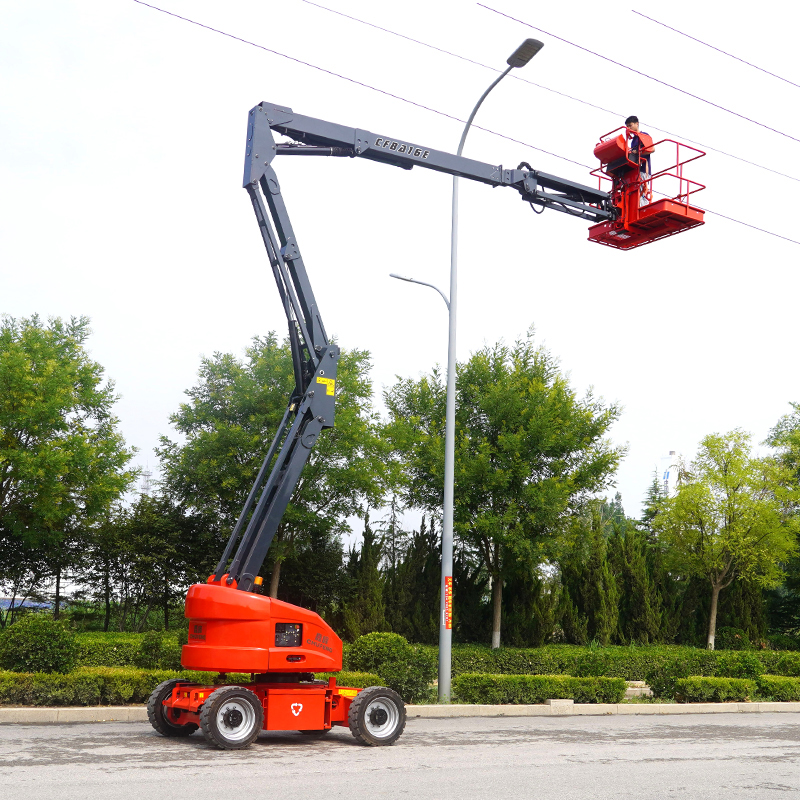

CFBA16E – Electric Articulated Boom Lifts
CFBA16E – Articulated Boom Lifts Advantages:
• Lightweight and energy-efficient compact and with excellent range.
• 355° rotation angle of turntable allows for a wide range of multi-angle work.
• Simple operation complete safety devices easy to meet the different needs of aerial work.
• Battery-powered zero noise and zero emission especially suitable for indoor and outdoor construction work.
CFBA16E – Articulated Boom Lifts Parameters:
| Model | CFBA16E |
| Loading Capacity | 230kg |
| Max.platform Height | 15.7m |
| Max.working Height | 17.7m |
| Max. horizontal Outreach | 9.3m |
| Max. up & Over Clearance | 7.8m |
| Overall Length(Stowed) | 6.8m |
| Overall Width(Stowed) | 1.9m |
| Overall Height(Stowed) | 2.1m |
| Wheelbase | 1.9m |
| Ground Clearance | 0.22m |
| Platform Dimension(L×W×H) | 2.03*1.34*1.45m |
| Rotation Angle Of Turntable | 355° |
| Rotation Angle Of Platform | 160° |
| Drive Speed(Stowed) | 5.2km/h |
| Drive Speed(Raised) | 0.8km/h |
| Gradeability | 30% |
| Turning Radius(Inside) | 0.7m |
| Turning Radius(Outside) | 3.31m |
| Rotary Table Tailswept | 50mm |
| Max.working Slope | 3° |
| Drive×Steer | 2WD×2WS |
| Tire Type | 240/55D17.5 |
| Battery | 8x6V，340Ah |
| Control Voltage | 12VDC |
| Hydraulic Oil Tank | 40L |
| Weight | 7450kg |
Standard Configuration
• Solid Tyre
• Lead-acid Battery
• Weighing System
• Display Screen
• Rexroth System
• 355° Turntable Rotation
• Main Arm Drops By Its Own Weight
• Emergency Brake Release
• Fault Diagnosis System
• Emergency Stop System
• Emergency Descent System
• Tilt Protection System
• 160° Hydraulic Rotary Platform
• Safety Warning Light
• Rear Detection And Ride Confirmation
• Full Proportional Handle Gradient Control
• Hydraulic Leveling Working Platform
• Horn And Buzzer Safety Warning
Optional Configuration
• Lithium Battery
• 1.83m Working Guardrail
• Foam Non-marking Tires
• Height Limit Collision Avoidance Device
• Install Working Lights On The Platform
• Install AC Power Cord On The Platform
