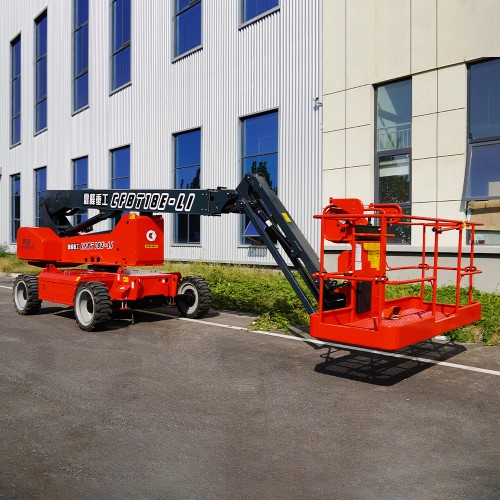

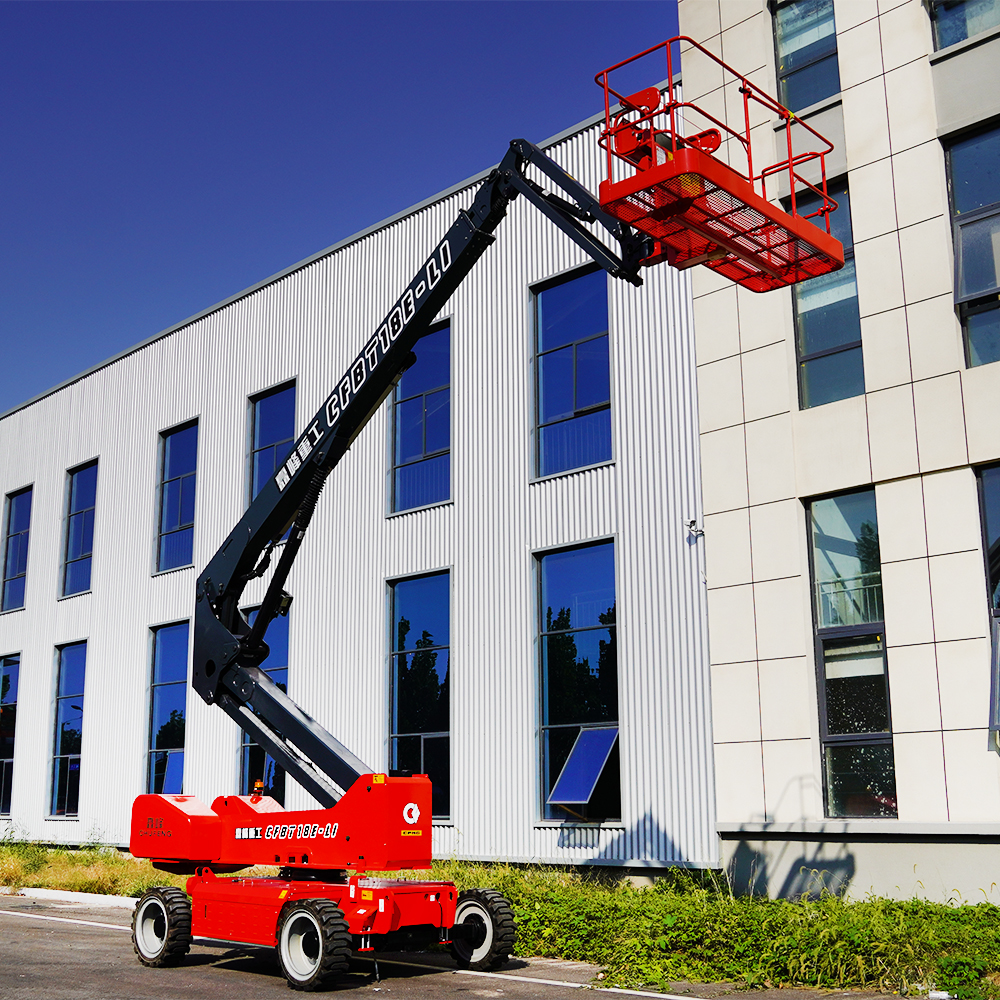

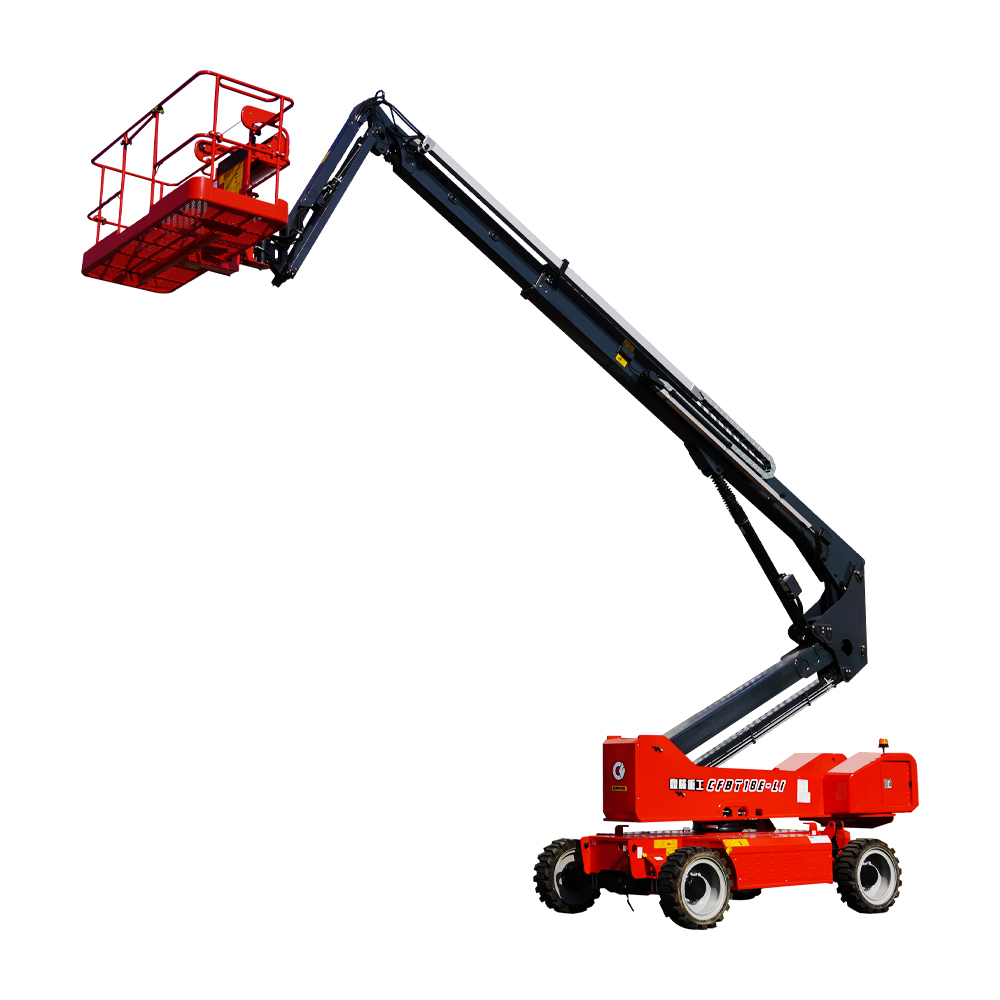

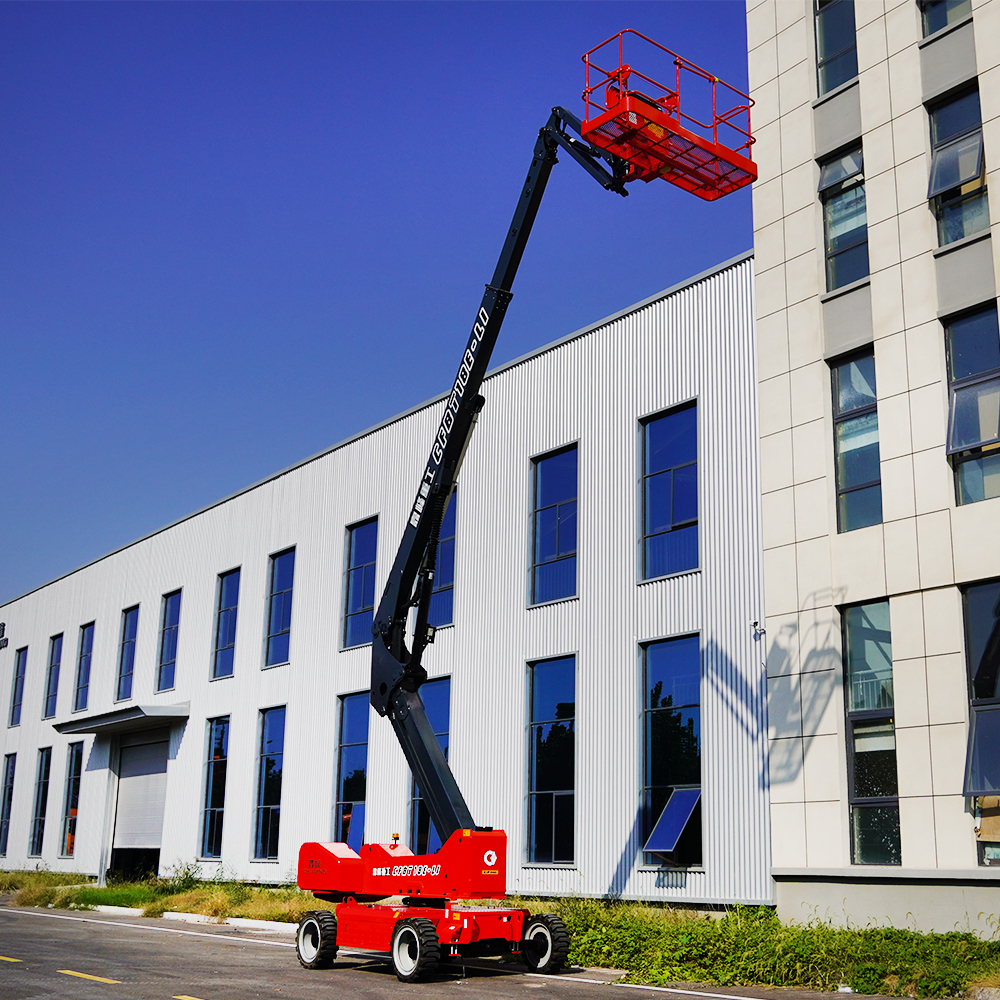

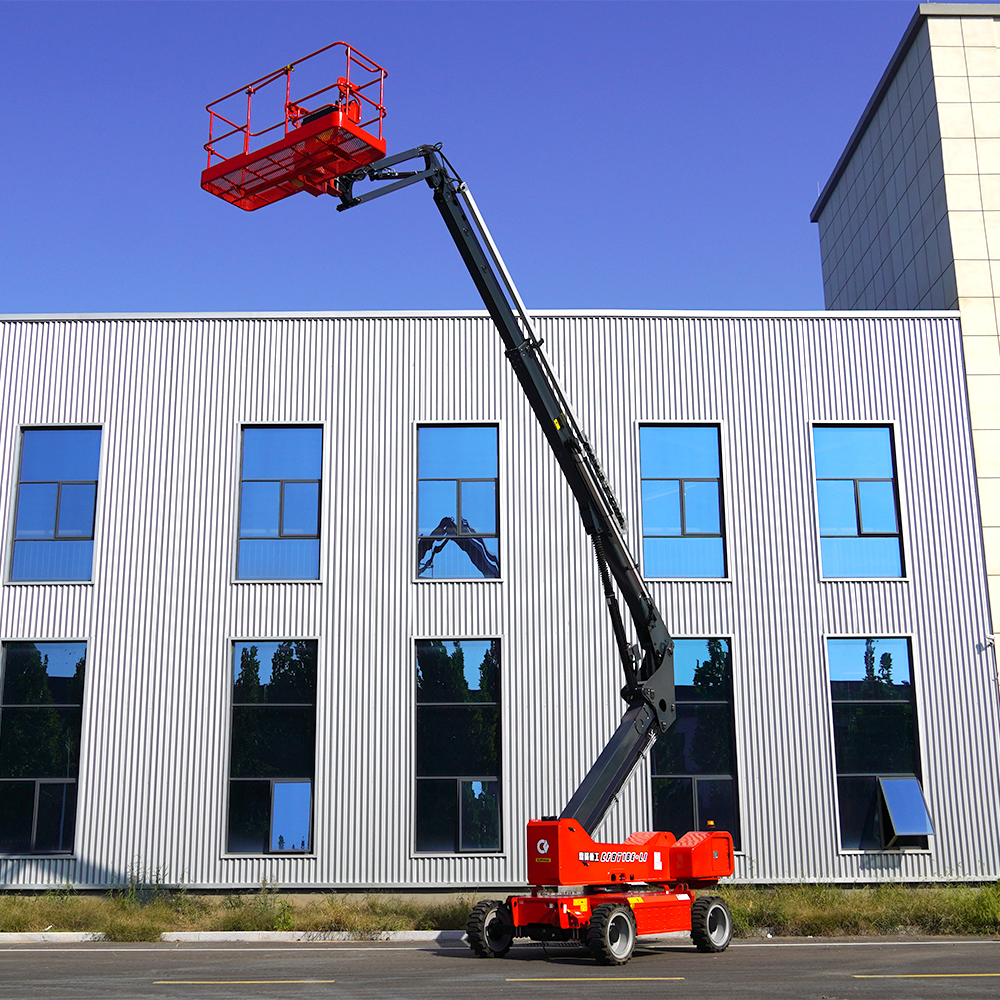

CFBT18E-Li – Electric Telescopic Boom Lifts

Product Description:

CFMG's electric telescopic boom lifts have a maximum working height of 18m and 29m, are lightweight and energy-saving, with perfect safety devices, and can easily cope with all kinds of complex road conditions, and can be lithium and lead-acid batteries are optional based on your work need.

Product Model: CFBT18E-Li

Max.working Height: 17.9m

Max.platform Height: 15.9m

Platform Dimension(L×W×H): 2.44*0.91*1.3m

Max. horizontal Outreach: 6.97m

Overall Dimensions: 8.59*2.32*2.58m

Loading Capacity: 320kg

Rotation Angle Of Turntable: 360°

Gradeability: 45%

Batteries: 76.8V/173AH

Weight: 7840kg

Send email to us Download as PDF

Product Parameters

Product Configurations

Product Tags

CFBT18E-Li – Telescopic Boom Lifts Advantages:

• Lightweight and energy-efficient compact and with excellent range.

• Standard with non-marking off-road tires strong driving power 45% gradeability.

• Small turning radius simple operation suitable for indoor and outdoor road conditions.

• Battery-powered zero noise and zero emission especially suitable for indoor and outdoor construction work.

CFBT18E-Li – Telescopic Boom Lifts Parameters:

Model	CFBT18E-Li
Loading Capacity(Unlimited/2 persons and tools)	320kg
Max. Platform Height	15.9m
Max. Working Height	17.9m
Max. Horizontal Reach	6.97m
Overall Length(Stowed)	8.59m
Overall Width(Stowed)	2.32m
Overall Height(Stowed)	2.58m
Wheelbase	2.5m
Min. ground Clearance	0.26m
Platform Dimensions(LWH)	2.440.911.3m
Workers(Indoor/Outdoor)	2/2
Rotation Angle Of Tumtable	360°
Rotation Angle Of Platform	160°
Machine Running Speed(Stowed)	5km/h
Machine Running Speed(Raised)	0.8km/h
Gradeability	45%
Min. turning Radius (lnner Wheel)	2.9m
Min. turning Radius (Outer Wheel)	5.4m
Turntable Tail Swing	1.55m
Max. allowable Operating Slope	5°
Drive*Steer	4WD*2WS
Solid Tyre Size	840*274
Drive Motor Power	30KW
Pump Motor Power	20KW
Battery	76.8V/173AH
Control Voltage	12VDC
Charger	80V/40A
Hydraulic Oil Tank	125L
Weight	7840kg

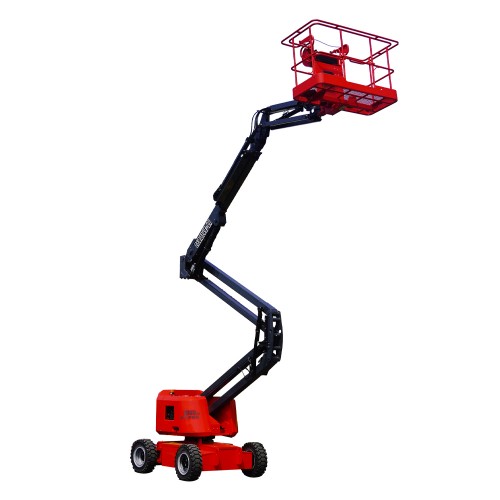

Previous: CFBA14E – Electric Articulated Boom Lifts

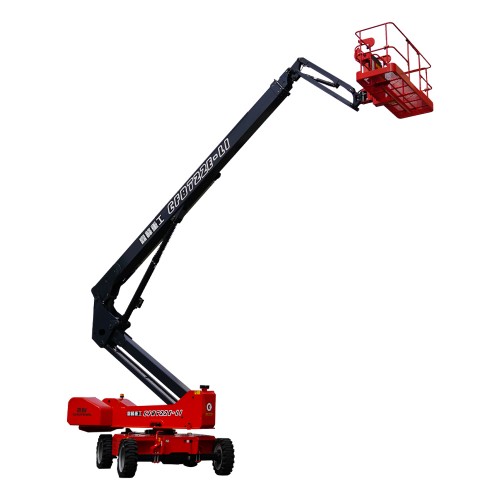

Next: CFBT22E-Li – Electric Telescopic Boom Lifts

Standard Configuration

• Floating Bridge
• Four-wheel Brake
• Weighing System
• Voice Broadcast
• Platform Rotation
• 7 Inch Smart Screen
• T-BOX(GPS)
• Emergency Descent System
• Fault Diagnosis System
• Tilt Protection System
• Emergency Stop System
• Four-wheel Drive/Two-wheel Steering
• Automotive Grade Full Tube Sheath Protection
• Maximum Allowable Operating Inclination Of 5°
• Rear Inspection And Driving Confirmation
• Rotating Alarm Light Safety Warning
• Horn And Buzzer Safety Warning
• Hydraulic Leveling Of Work Platform
• Mechanical Release Of Traveling Brake

Optional Configuration

▪ File Box
▪ Lithium Battery/Lead-acid Battery
▪ Anti-collision Device
▪ Traceless Tyre/Solid Tyre
▪ Install Working Lights On The Platform
▪ Anti-pinch Device
▪ Install AC Power Cord On The Platform
▪ Tool Box (Only For Swing Door Working Guardrail)
▪ Half-height fence (Only For Swing Door Working Guardrail)
▪ Glass Bracket (Only For Swing Door Working Guardrail)
