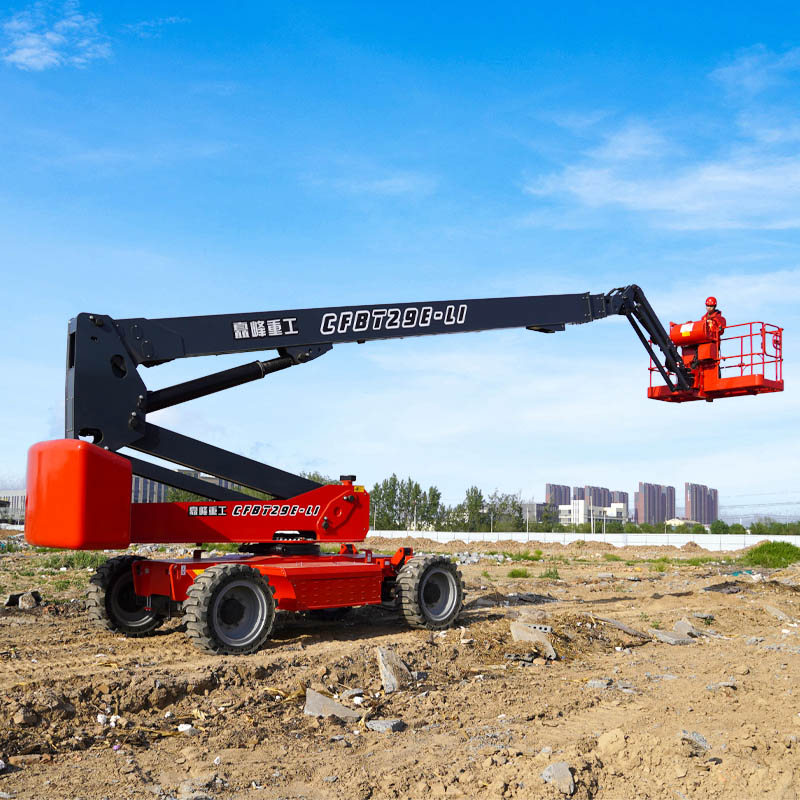

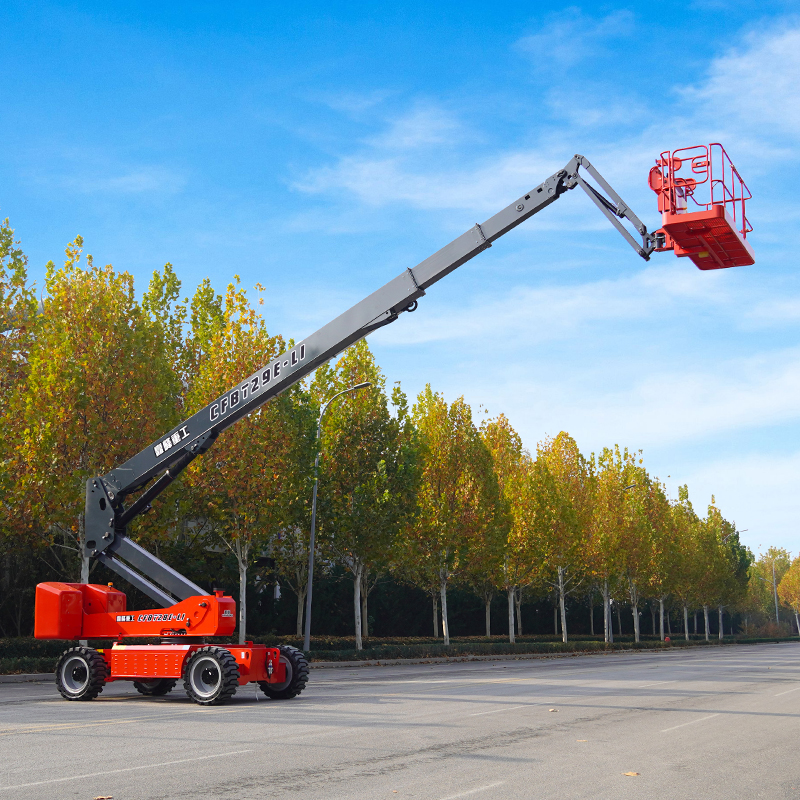

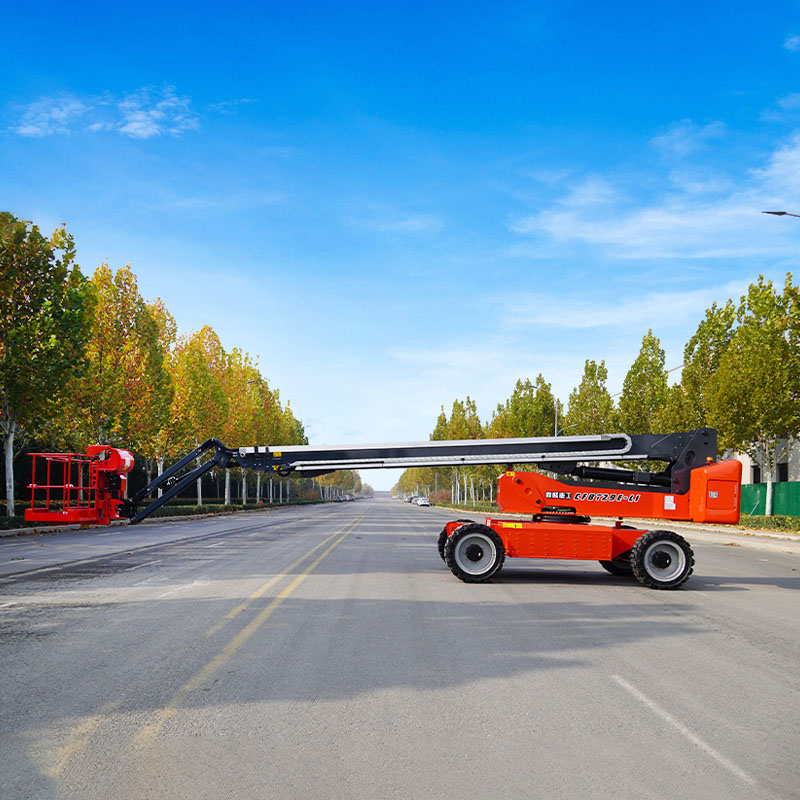

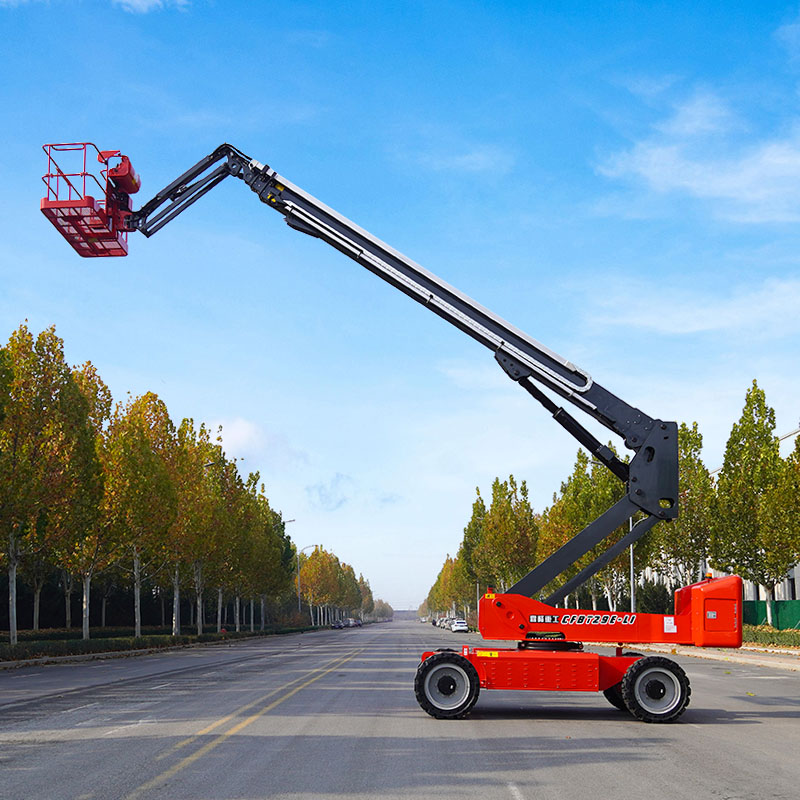

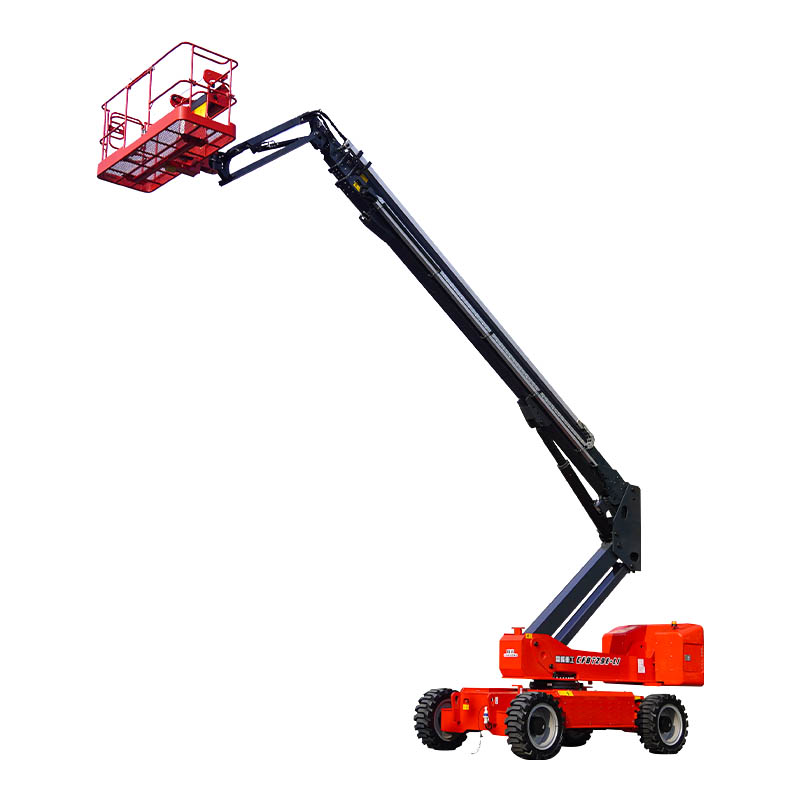

CFBT29E-Li – Electric Telescopic Boom Lifts

Product Description:

CFMG's two type electric telescopic boom lifts have a maximum working height of 20m and 29m, are lightweight and energy-saving, with perfect safety devices, and can easily cope with all kinds of complex road conditions, and can be lithium and lead-acid batteries are optional based on your work need.

Product Model: CFBT29E-Li

Max.working Height: 28.9m

Max.platform Height: 26.9m

Platform Dimension(L×W×H): 2.44*0.91*1.3m

Max. horizontal Outreach: 21.78m

Overall Dimensions: 12.03*2.49*2.89m

Loading Capacity(Unlimited/2 persons and tools): 320kg/460kg

Rotation Angle Of Turntable: 360°

Gradeability: 45%

Batteries: 76.8V/460AH

Weight: 15800kg

Send email to us Download as PDF

Product Parameters

Product Configurations

Product Tags

CFBT29E-Li – Telescopic Boom Lifts Advantages:

• Energy saving, zero-emission and little maintenance cost.
• Wide working range with a large load capacity of up to 460kg.
• Strong four-wheel off-road ability to adapt to multiple terrains.
• Complete safety protection device to guarantee workers’ safety.

CFBT29E-Li – Telescopic Boom Lifts Parameters:

Model	CFBT29E-Li
Loading Capacity(Unlimited/2 persons and tools)	320kg/460kg
Max. working Height	28.9m
Max. platform Height	26.9m
Max. horizontal Reach	21.78m
Overall Length(Stowed)	12.03m
Overall Width(Stowed)	2.49m
Overall Height(Stowed)	2.89m
Wheelbase	3.02m
Min. ground Clearance	0.36m
Platform Dimensions(LWH)	2.440.911.3m
Rotation Angle Of Turntable	360°
Rotation Angle Of Platform	160°
Machine Running Speed(Stowed)	5km/h
Machine Running Speed(Raised)	0.8km/h
Gradeability	45%
Min, turning Radius (lnner Wheel)	3.3m
Min. tuming Radius (Outer Wheel)	6.7m
Turntable Tail Swing	1.98m
Tit Rating	5°
Drive*Steer	4WD*2WS
Tire Spec/Type	1015*380/Solid Tire
Drive Motor Power	30KW
Pump Motor Power	20KW
Battery	76.8V/460AH
Control Voltage	12VDC
Charger	80V/40A
Hydraulic Oil Tank	125L
Weight	15800kg

Previous: CFBT21RE-Li – Electric Telescopic Boom Lifts

Next: CFBT23E-Li – Electric Telescopic Boom Lifts

Standard Configuration

• Floating Bridge
• Four-wheel Brake
• Weighing System
• Voice Broadcast
• Platform Rotation
• 7 Inch Smart Screen
• T-BOX(GPS)
• Emergency Descent System
• Fault Diagnosis System
• Tilt Protection System
• Emergency Stop System
• Four-wheel Drive/Two-wheel Steering
• Automotive Grade Full Tube Sheath Protection
• Maximum Allowable Operating Inclination Of 5°
• Rear Inspection And Driving Confirmation
• Rotating Alarm Light Safety Warning
• Horn And Buzzer Safety Warning
• Hydraulic Leveling Of Work Platform
• Mechanical Release Of Traveling Brake

Optional Configuration

▪ File Box
▪ Lithium Battery
▪ Anti-collision Device
▪ Lead-acid Battery
▪ Traceless Tyre
▪ Solid Tyre
▪ Install Working Lights On The Platform
▪ Anti-pinch Device
▪ Install AC Power Cord On The Platform
▪ Tool Box (Only For Swing Door Working Guardrail)
▪ Half-height fence (Only For Swing Door Working Guardrail)
▪ Glass Bracket (Only For Swing Door Working Guardrail)
