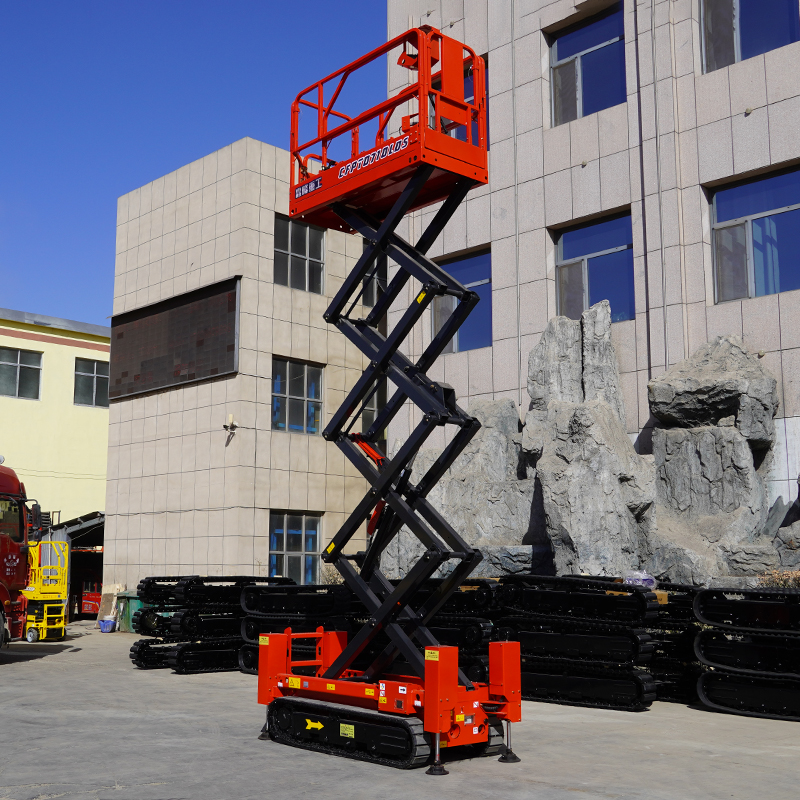

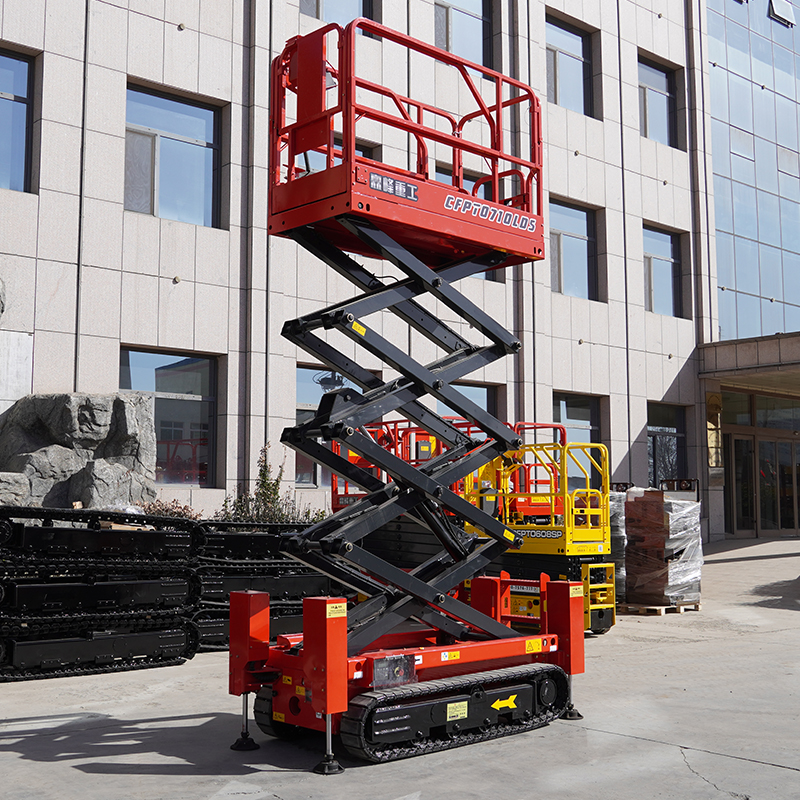

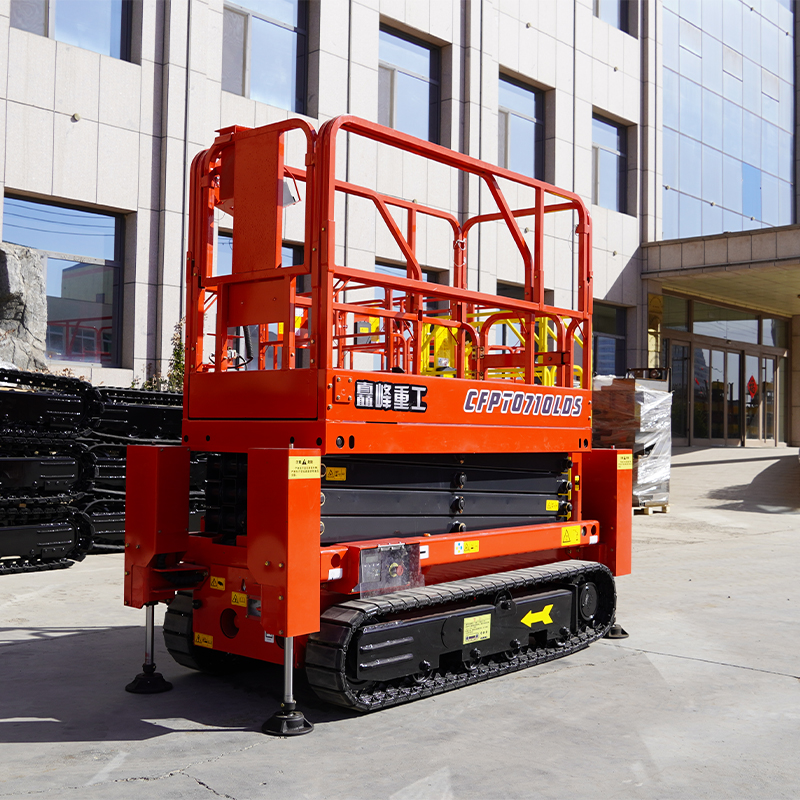

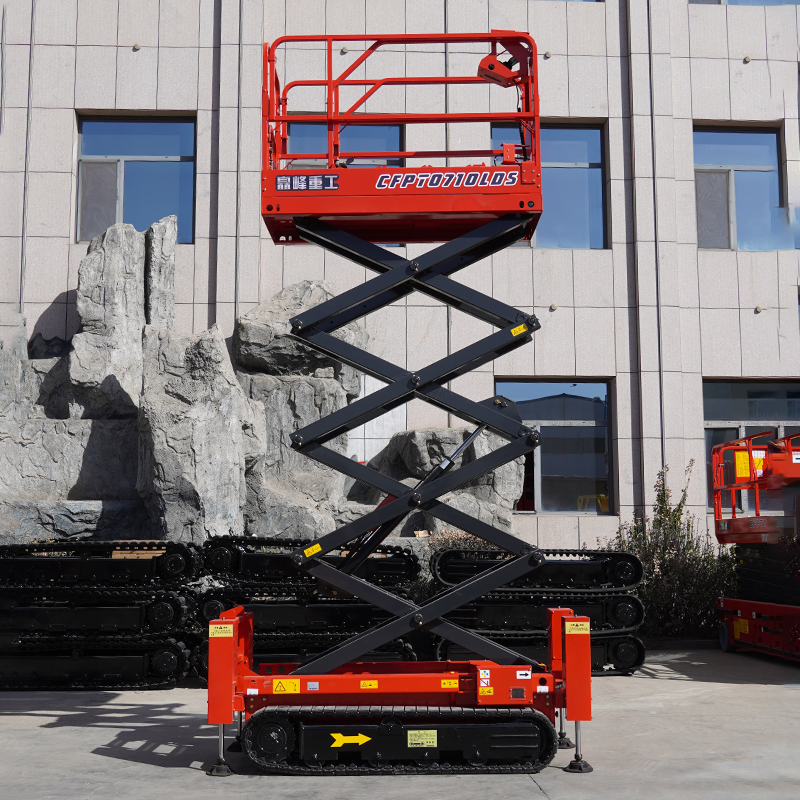

CFPT0710LDS – Crawler Scissor Lifts With Outriggers
CFPT0710LDS Crawler Scissor Lifts Advantages:
• One-key Leveling Hydraulic Outriggers safe and reliable.
• Adopting high-power AC motor drive high efficiency and strong range.
• A variety of safety protection devices to ensure high safety when walking.
• Steel crawler chassis with in-situ steering suitable for all kinds of complex road surfaces.
CFPT0710LDS Crawler Scissor Lifts Parameters:
| Product Model | CFPT0710LDS |
| Max.working Height | 8.7m |
| Max.platform Height | 6.7m |
| Overall Length(Including Ladder) | 2455mm |
| Overall Width | 1010mm |
| Overall Height(Guardrail Unfolded) | 2180mm |
| Overall Height(Guardrail Folded) | 1830mm |
| Platform Size(Length) | 1859mm |
| Platform Size(Width) | 810mm |
| Platform Extension Size | 900mm |
| Min.ground Clearance | 90mm |
| Load Capacity | 230kg |
| Extended Platform Loads | 113kg |
| Workers(Indoor/Outdoor) | 2/1 |
| Min.turning Radius | 0m |
| Lifting Motor | 24V/2.2kw |
| Traveling Motor | 2*24V/1.5kw |
| Machine Running Speed(Stowed) | 1.8km/h |
| Machine Running Speed(Rasied) | 0 |
| Rising/Descending Speed | 20/19sec |
| Gradeability | 25% |
| Max.working Slope | 1.5°/3° |
| Batteries | 24V/240Ah |
| Charger | 24V/36A |
| Weight | 1940kg |
Standard Configuration
• Proportional Control
• Self-lock Gate On Platform
• Extension Platform
• Crawler
• Automatic Brake System
• Emergency Descent System
• Emergency Stop Button
• Tubing Explosion-Proof System
• Fault Diagnosis System
• Tilt Protection System
• Buzzer
• Horn
• Safety Maintenance Support
• Standard Forklift Slot
• Charging Protection System
• Strobe Lamp
• Foldable Guardrail
Optional Configuration
• Overload Sensor With Alarm
• AC Power On The Platform
• Platform Work Light
• Chassis-To-Platform Air Duct
• Top Limit Protection
• Steel Crawler
