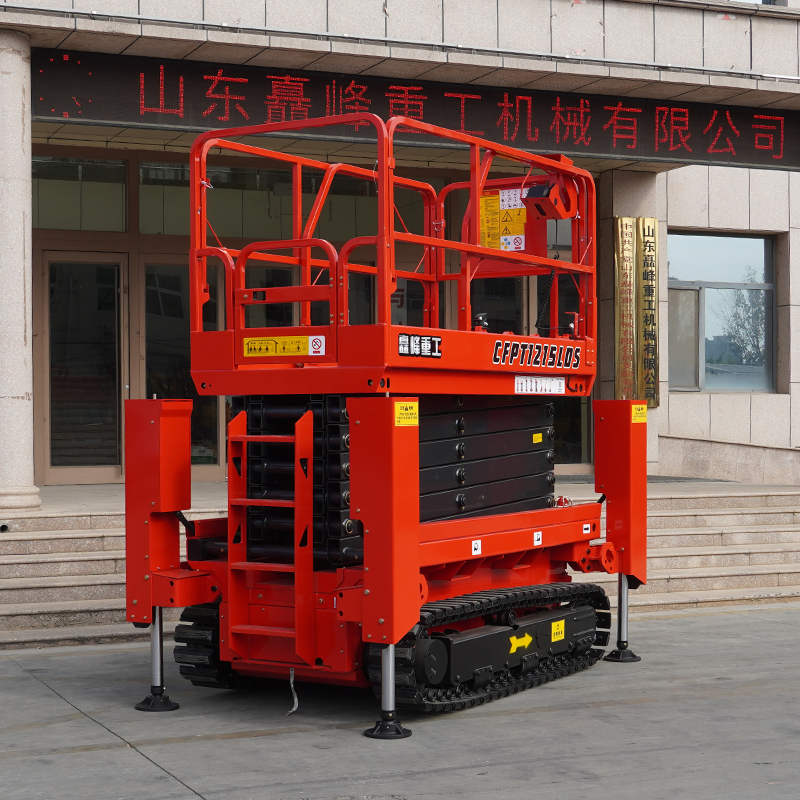

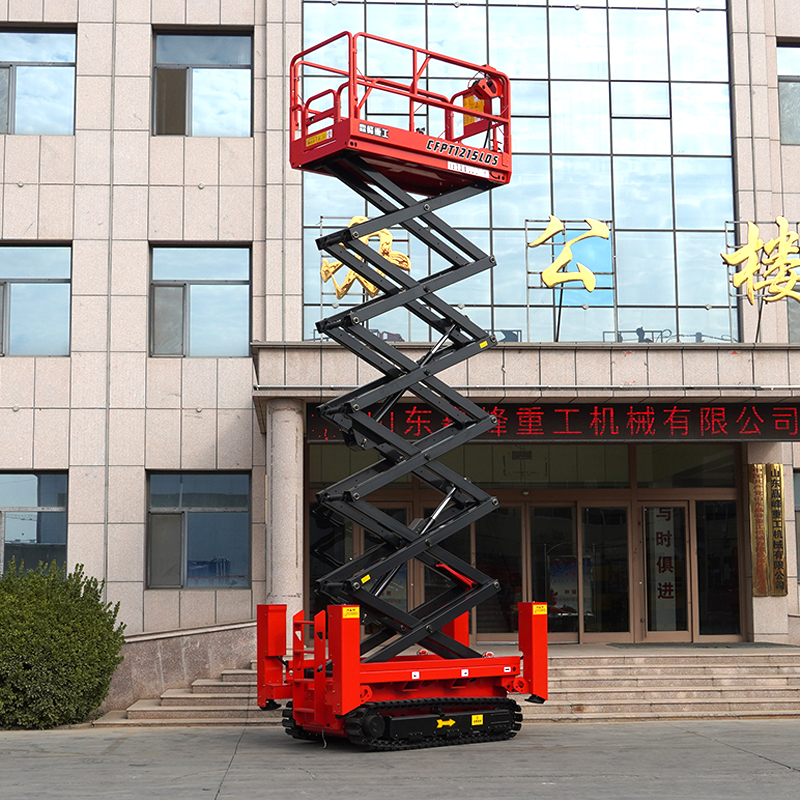

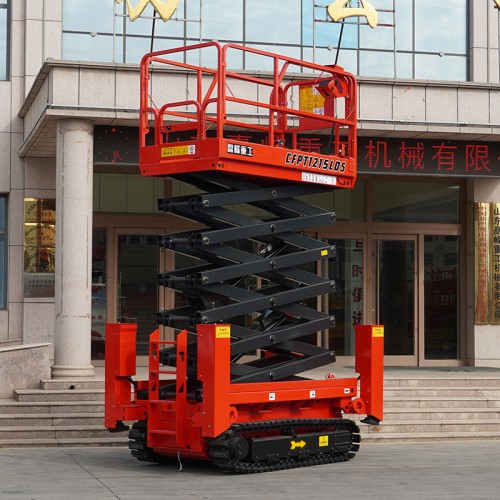

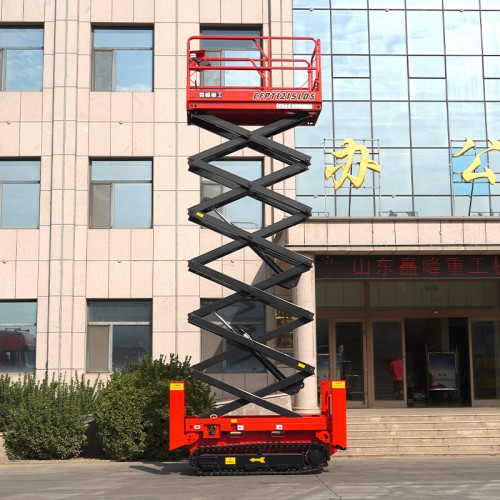

CFPT1215LDS – Crawler Scissor Lifts With Outriggers
CFPT1215LDS Crawler Scissor Lifts Advantages:
• One-key Leveling Hydraulic Outriggers safe and reliable.
• Adopting high-power AC motor drive high efficiency and strong range.
• A variety of safety protection devices to ensure high safety when walking.
• Steel crawler chassis with in-situ steering suitable for all kinds of complex road surfaces.
CFPT1215LDS Crawler Scissor Lifts Parameters:
| Product Model | CFPT1215LDS |
| Max.working Height | 13.75m |
| Max.platform Height | 11.75m |
| Overall Length(Including Ladder) | 2767mm |
| Overall Width | 1500mm |
| Overall Height(Guardrail Unfolded) | 2740mm |
| Overall Height(Guardrail Folded) | 2130mm |
| Platform Size(Length) | 2270mm |
| Platform Size(Width) | 1110mm |
| Platform Extension Size | 900mm |
| Min.ground Clearance | 150mm |
| Load Capacity | 320kg |
| Extended Platform Loads | 113kg |
| Workers(Indoor/Outdoor) | 2/2 |
| Min.turning Radius | 0m |
| Lifting Motor | 48V/4.5kw |
| Traveling Motor | 2*48V/5.8kw |
| Machine Running Speed(Stowed) | 2km/h |
| Machine Running Speed(Rasied) | 0 |
| Rising/Descending Speed | 52/54sec |
| Gradeability | 30% |
| Max.working Slope | 2°/3° |
| Batteries | 8*6V/240Ah |
| Charger | 48V/40A |
| Weight | 3700kg |
Standard Configuration
• Proportional Control
• Self-lock Gate On Platform
• Extension Platform
• Crawler
• Automatic Brake System
• Emergency Descent System
• Emergency Stop Button
• Tubing Explosion-Proof System
• Fault Diagnosis System
• Tilt Protection System
• Buzzer
• Horn
• Safety Maintenance Support
• Standard Forklift Slot
• Charging Protection System
• Strobe Lamp
• Foldable Guardrail
Optional Configuration
• Overload Sensor With Alarm
• AC Power On The Platform
• Platform Work Light
• Chassis-To-Platform Air Duct
• Top Limit Protection
• Steel Crawler
