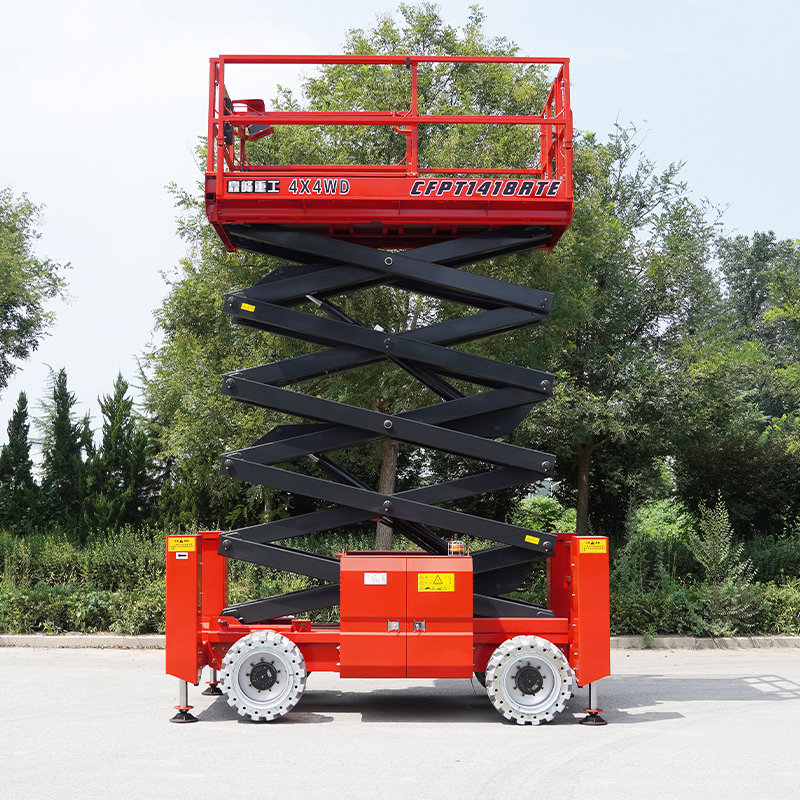

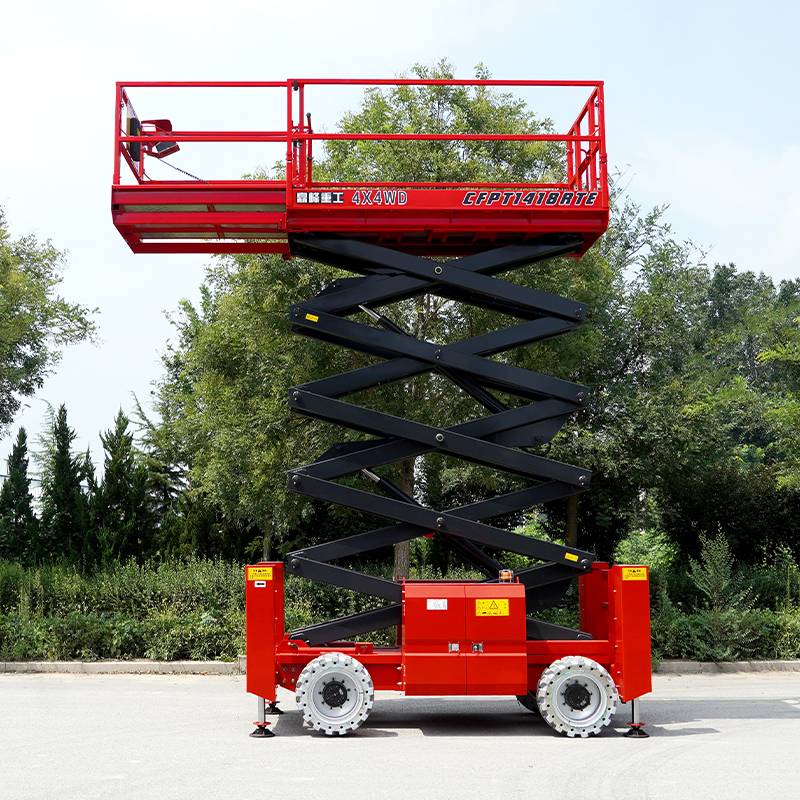

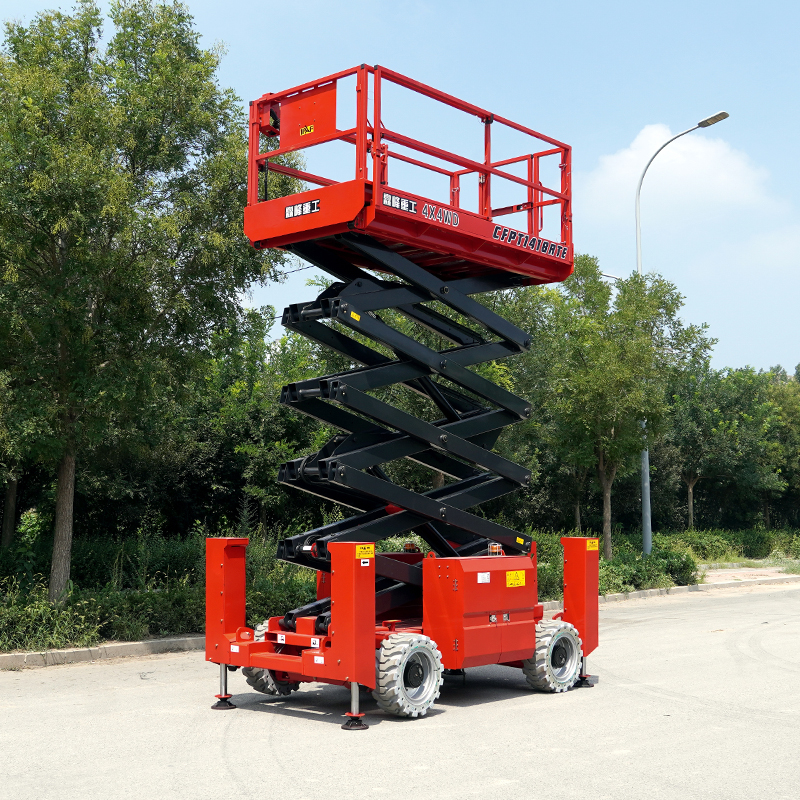

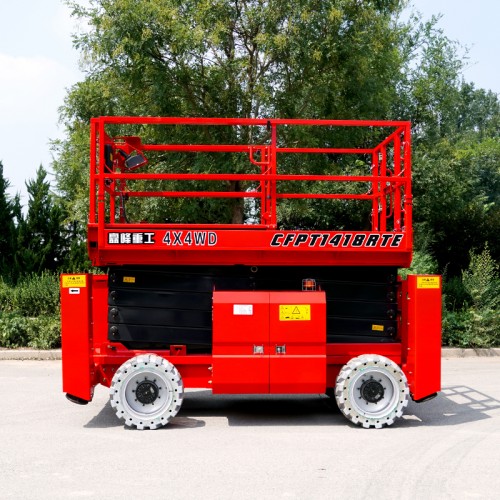

CFPT1418RTE – Rough Terrain Scissor Lifts With Outriggers

Product Description:

CFMG rough terrain scissor lifts are electric and diesel two models to choose from, it is equipped with extended working platform to improve the productivity, and the hydraulic one-click automatic leveling outriggers are stable and suitable for all kinds of complicated and rough roads.

Product Model: CFPT1418RTE

Max.working Height: 16m

Max.platform Height: 14m

Platform Size: 2910*1530mm

Platform Extension Size: 1520mm

Overall Dimensions: 3340*1790*2295mm

Load Capacity: 320kg

Extended Platform Loads: 140kg

Workers(Indoor/Outdoor): 3/2

Batteries: 8*6V/310Ah

Weight: 5560kg

Send email to us Download as PDF

Product Parameters

Product Configurations

Product Tags

CFPT1418RTE – Rough Terrain Scissor Lifts Advantages:

• Equipped with load cell high safety performance.

• Equipped with a single extension platform large load expanding the scope of operation improve productivity.

• Automatic hydraulic one-touch leveling outriggers adapt to all kinds of harsh and complex working conditions.

• Large-capacity battery four-wheel drive and steering system has excellent off-road performance no noise and long range.

CFPT1418RTE – Rough Terrain Scissor Lifts Parameters:

Product Model	CFPT1418RTE
Max.working Height	16m
Max.platform Height	14m
Overall Length(Including Ladder)	3340mm
Overall Width	1790mm
Overall Height(Guardrail Unfolded)	2960mm
Overall Height(Guardrail Folded)	2295mm
Platform Size(Length)	2910mm
Platform Size(Width)	1530mm
Platform Extension Size	1520mm
Min.ground Clearance	160mm
Load Capacity	320kg
Extended Platform Loads	140kg
Workers(Indoor/Outdoor)	3/2
Min.turning Radius(Inner Wheel)	3650mm
Min.turning Radius(Outer Wheel)	5850mm
Lifting Motor	48V/6kw
Traveling Motor	248V/1.2kw+248V/3.5kw
Machine Running Speed(Stowed)	4.5km/h
Machine Running Speed(Rasied)	0.8km/h
Rising/Descending Speed	60/50sec
Gradeability	35%
Max.working Slope	2°/3°
Tyre	Φ660*180mm
Batteries	8*6V/310Ah
Charger	48V/35A
Weight	5560kg

Previous: CFPT1623RTE – Rough Terrain Scissor Lifts With Outriggers

Next: CFPT1218RTE – Rough Terrain Scissor Lifts With Outriggers

Standard Configuration
• Horn
• Timer
• Strobe Light
• Emergency Descent
• 4×4 Drive
• Driving Confirmation
• Folding Fence
• Buzzer
• Tilt Alarm
• Platform Self-locking Door
• Floating Bridge Chassis
• Lanyard Connection Point
• Extension Platform–Unidirectional/Bidirectional
• Manual Brake Release
• Automatic Brake System
• Emergency Stop Button
• Non-Marking Tire–12m/14m
• Battery Charge(Fast/Slow)–16m
• Weight Drop System
• Oil Pipe Explosion-proof System
• Fault Diagnosis System
• Full Proportional Handle Control
• Hydraulic Oil Cooling System–16m
• Fixing And Lifting Points
• Automatic Hydraulic Leveling Leg
• Load Sensing System

Optional Configuration
• Lithium Battery–12m/14m/16m(Diesel)
• 1.83m Work Fence
• Top Limit Protection
• Platform Work Lights
• To Platform AC Power Cord
• Foam Non-marking Tire–16m(Electric/Diesel)
